How to Create Your Own RAG-Based AI Chatbot

Most businesses reach a point where they are answering the same questions every day. A RAG-based chatbot that reads your actual content can handle those - without hallucinating, without a team of engineers, and without a massive platform.

1.What Is RAG?

Most businesses reach a point where they realize they are answering the same questions over and over. What are your pricing plans? Do you offer refunds? How does the onboarding work? Your team handles these every day, and it eats up time that could go toward actually growing the business.

RAG stands for Retrieval-Augmented Generation.

A regular AI chatbot only knows what it was trained on. Ask it something specific to your business, and it either makes something up or says it does not know. Neither is helpful.

RAG solves this by giving the AI a way to look things up before it answers. Instead of relying purely on its training, it first searches through your own documents, FAQs, or website content, finds the most relevant pieces, and then uses those to generate an answer.

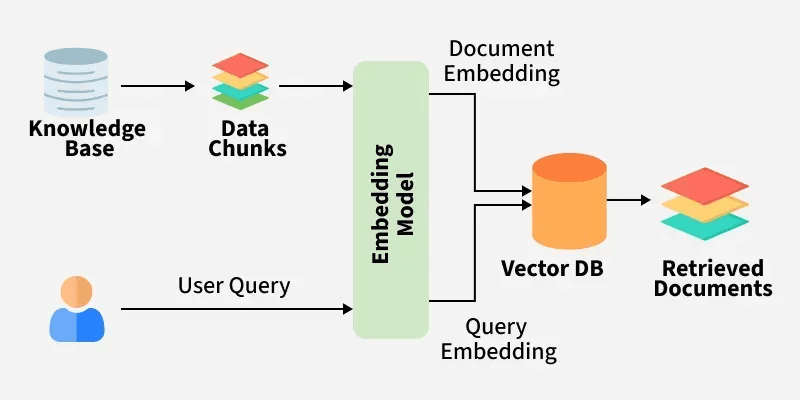

RAG architecture diagram - retrieval step before generation

It is the difference between a chatbot that hallucinates and one that helps.

2.What Is Context Retrieval?

Context retrieval is the first step in the RAG process. Before the AI can generate an answer, it needs to find the right information to base that answer on.

Think of it like this.

You have a massive filing cabinet with thousands of documents. When a visitor asks a question, the system quickly searches that cabinet, finds the pages most likely to contain the answer, and hands them to the AI. The AI then reads those pages and responds.

The retrieval step is what makes the whole thing accurate. If the system pulls the wrong context, the answer will be wrong too. This is why the quality of your source documents matters a lot - the cleaner and more organized your content is, the better your chatbot will perform.

3.What Are Embeddings and Why Do They Matter?

Embeddings are how the system understands meaning, not just words.

When you store your documents in a RAG system, they do not get saved as plain text that gets searched like a basic keyword lookup. Instead, each chunk of text gets converted into a set of numbers - called an embedding - that captures its meaning in a mathematical form.

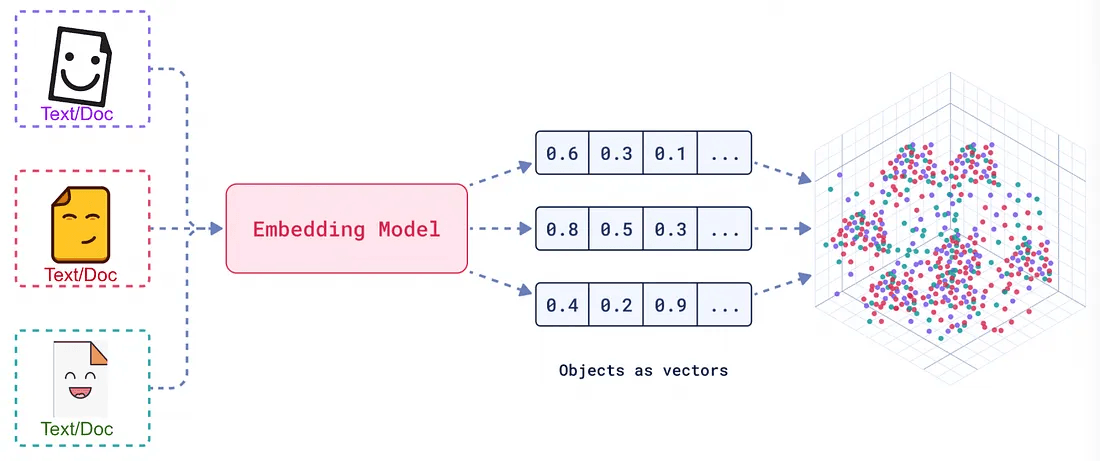

Text being converted into vector embeddings for semantic search

When a user asks a question, that question also gets converted into an embedding, and the system finds the stored content with the closest meaning - not just matching words.

This is why a visitor can ask "how do I get a refund" and the chatbot can still find your returns policy even if it says "cancellation and money-back process". The meaning matches even when the words do not.

Most embedding models are available through APIs. You send your text in, you get numbers back, and you store them in a vector database.

Pinecone - managed vector database, easy to scale
Chroma - open source, good for local development
PostgreSQL with pgvector - if you already use Postgres

Vector database storing embeddings for semantic retrieval

4.How to Use Embeddings to Retrieve Context

Here is the basic flow once your documents are embedded and stored.

Visitor types a question on your site

Triggers the retrieval pipeline

Question is converted into an embedding

Using the same model used for your documents

Vector database searched for closest matches

Semantic similarity, not keyword matching

Matching chunks passed to the language model

Along with the original question

Model generates a response from real context

Grounded answer in seconds

Getting the chunk size right matters. Too small and you lose context. Too large and you risk flooding the model with irrelevant information. Most people find that chunks between 200 and 500 tokens work well, with some overlap between chunks so meaning does not get cut off at the edges.

Chunk size and overlap illustration for RAG document preparation

5.Most Popular Models for Powering Your Chatbot

Once you have your retrieval setup, you need a language model to actually generate the responses.

OpenAI - GPT-4o

The most widely used option. Solid for understanding nuanced questions and producing clear, natural responses. The API is mature, well-documented, and there is a large community who have already solved most common problems.

Google Gemini

Worth considering if you are already in the Google ecosystem or need strong performance on longer documents. Handles large context windows well, which is useful if your source documents are detailed and lengthy.

OpenAI and Gemini API comparison for RAG chatbot use

6.Most Popular Tools for Deploying a Chatbot on Your Website

Having the AI logic in place is one thing. Getting it in front of your website visitors in a way that actually works is another.

Zendesk

A well-established customer support platform with chatbot capabilities built in. Primarily designed as a full support suite - ticketing, reporting, large team management. Priced accordingly, which can be heavy for smaller teams.

WidgetKraft

Built specifically for website owners who want to add a live chat widget or AI chatbot without the overhead of an enterprise support suite.

Train it on your own documentation or website content
Embed with a single line of code - no backend required
Conversations routed to Slack or the WidgetKraft dashboard
Fully customizable widget that looks native to your site
No cap on conversations or messages

For teams that already live in Slack, that alone saves a lot of back-and-forth. For businesses that want the RAG-powered experience without stitching together multiple platforms, it is a practical option.

7.Putting It Together

Building a RAG-based AI chatbot is not as out of reach as it sounds. The core pieces are well understood.

Good source content - clean, organized documentation
A reliable embedding model - OpenAI, Cohere, or similar
A vector database for retrieval - Pinecone, Chroma, or pgvector
A language model to generate the response - GPT-4o or Gemini

What varies is how much you want to build yourself versus how much you want handled for you.

Either way, the goal is the same - fewer repetitive questions for your team, faster answers for your visitors, and a website that actually works for you around the clock.
